Introduction

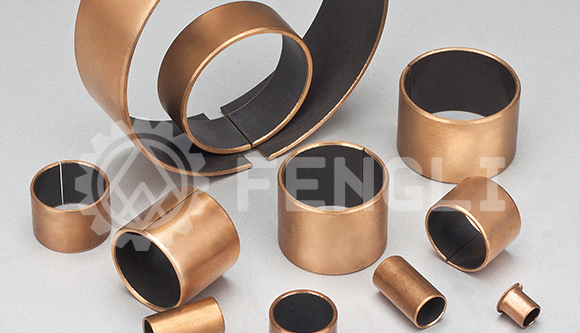

SF-1B Bronze Bushing is based on tin Bronze as the base, the middle sintered Bronze spherical powder, the surface rolling PTEE and high temperature filled material. It has a high safety factor, can not stop working in the continuous repair of high-temperature places and can not be particularly suitable for refueling places. At present, the product has been widely used in the metallurgical steel industry, continuous casting machine billet raceway, high-temperature furnace furnace equipment, cement grouting pump and screw conveyor. It can be combined in the external steel sleeve, can also be made into flanging, to the end, the hole at the same time the effect of friction. Sliding bearing part of the bridge, is the use of SF-1B wear-resistant layer of thick PTFE products to replace the plate. Up to 130N / mm² load-bearing requirements.

Data	Code	SF-1B
Data	Material	Bronze+Bronze+(PTFE+ Pb+Filler)
Applications		Products used in metallurgical machinery, continuous casting machinery, cement machinery.
Max Load Capacity P (Dry Friction)	Static Load N/mm²	250
	Dynamic Load N/mm²	140
	Oscoillation Load N/mm²	60
Max Line Speed V	Dry Friction m/s	2.5
Max Line Speed V	Oil Lubrication m/s	＞5
PV Value Limit	Dry Friction m/s N/mm²·m/s	1.8
PV Value Limit	Oil Lubrication m/s N/mm²·m/s	3.6
Friction Coefficient u	Dry Friction	0.08~0.20
Friction Coefficient u	Oil Lubrication	0.02~0.12
Mating Axis	Hardness HB	＞220
Mating Axis	Roughness Ra	0.4~1.25
Working Temperature ℃		-200~+280
Thermal Conductivity W/mk		60
Coefficient Of Linear Xpansion		11×10^-6/K
Outside Surface Plating		-
In addition to the standard products shown in the catalog, you can also provide non-standard products or order according to customer requirements.
