FB-092 Bronze BushingZHEJIANG DLG TRANSMISSON TECHNOLOGY CO.,LTD(Zhejiang Fengli Drive Technology Co., Ltd.)

Introduction

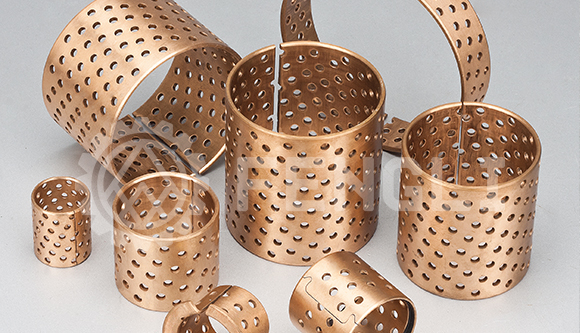

FB-092 Bronze Bushing is a bronze material for the matrix, processing uniform and orderly injection hole, the rolling made of thin-walled bearings, lubricating grease after assembly, and then configure the end face seal and use. The bearing has a large amount of oil, easy installation, the advantages of small size design, and can replace the use of copper sets, can greatly reduce costs.
At present the product has been used in conveyors, lifts, roll field machines, school-level machines, such as medium and low-speed occasions.

Technical Parameters

Data Code FB-092
Material CuSn8P(Qsn8-0.3)
Applications   Products are widely used in agricultural machinery, construction machinery, engineering machinery.
Density g/cm³   8.8
Max Load Capacity N/mm²   120
Max Line Speed V Grease Lubrication m/s 2.5
PV Value Limit Grease Lubrication N/mm²·m/s 2.8
Tensile Strength N/mm²   >460
Yield Strength N/mm²   >280
Hardness HB   90~150
Friction Coefficient u   0.06~0.15
Mating Axis Hardness HRC ≥50
Roughness Ra 0.4~1.0
Working Temperature ℃   -40~+150
Thermal Conductivity W/mk   58
Coefficient Of Linear Xpansion   18.5×10-6/K
In addition to the standard products shown in the catalog, you can also provide non-standard products or order according to customer requirements.
