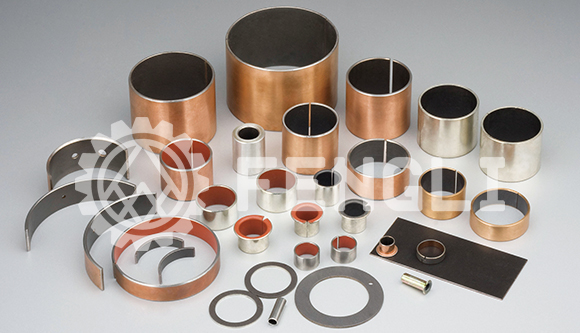

Introduction

SF-1 is of oil resistant,acid resistant,alkali resistant and seawater resistant,more over,there is no lead in the PTFE surface layer and so is particularly fit for application in food machinery,alkali flow meters,pumps motion elements in pharmaceutical machines,printing machines chemical engineering machines and other ocean industry.The bushing is a triple layers composites one,the base material is stainless steel back and a film of heat resistant power filled PTFE being calendered onto the sintered spherical bronze interlayer.

Data	Code	SF-1
Data	Material	Steel+Ronze+(PTFE+Pb+Filler)
Applications		Products used in printing machinery, textile machinery, tobacco machinery, fitness, and so on.
Max Load Capacity P (Dry Friction)	Static Load N/mm²	250
	Dynamic Load N/mm²	140
	Oscoillation Load N/mm²	60
Max Line Speed V	Dry Friction m/s	2.5
Max Line Speed V	Oil Lubrication m/s	＞5
PV Value Limit	Dry Friction m/s N/mm²·m/s	1.8
PV Value Limit	Oil Lubrication m/s N/mm²·m/s	3.6
Friction Coefficient u	Dry Friction	0.08~0.20
Friction Coefficient u	Oil Lubrication	0.02~0.12
Mating Axis	Hardness HB	＞220
Mating Axis	Roughness Ra	0.4~1.25
Working Temperature ℃		-200~+280
Thermal Conductivity W/mk		40
Coefficient Of Linear Xpansion		11×10^-6/K
Outside Surface Plating		copper/tin
In addition to the standard products shown in the catalog, you can also provide non-standard products or order according to customer requirements.
