PTO2660Light vehicle series of automotive power take

PTO2660QNPTO2660QW

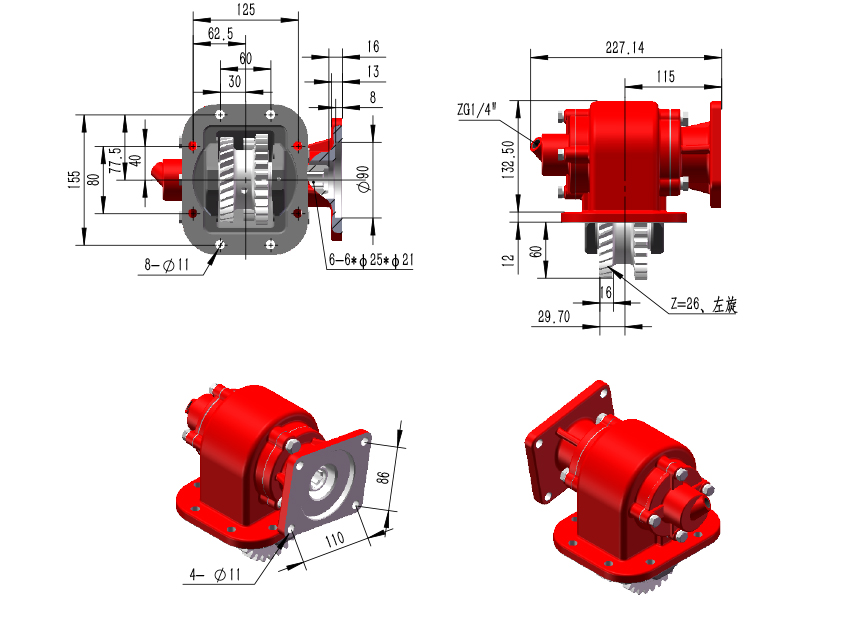

Shape and installation dimensions

Technical Parameters
Model PTO2660QN Output Shaft Rotation Contrary To Engine Rotation
Speed Ratio 0.88 Output Form Rectangular Connection Flange
Output Torque(N.m) 300 Output Shaft Head Form Internal Splines
Manipulation Mode Pneumatic Applicable Models -
Number Of Teeth Engaged z=26、Levorotatory With Gearbox WanLiYang 6T100、6TS40B-13-32
