PTO2671Light vehicle series of automotive power take

PTO2671QNPTO2671QW

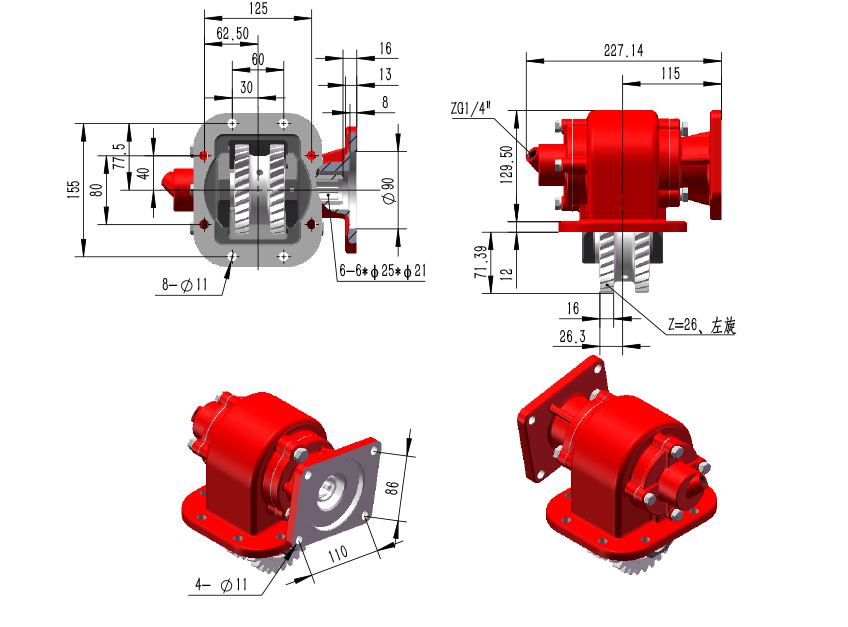

Shape and installation dimensions

Technical Parameters
Model PTO2671QN Output Shaft Rotation Contrary To Engine Rotation
Speed Ratio 1.083 Output Form Rectangular Connection Flange
Output Torque(N.m) - Output Shaft Head Form Internal Splines
Manipulation Mode Pneumatic Applicable Models -
Number Of Teeth Engaged z=26、Levorotatory With Gearbox WanLiYang 6T51/53
