PTO1514-012(Four-axis)Light vehicle series of automotive power take

PTO1514QW-012(Four-axis)PTO1514QW-012B(Four-axis)

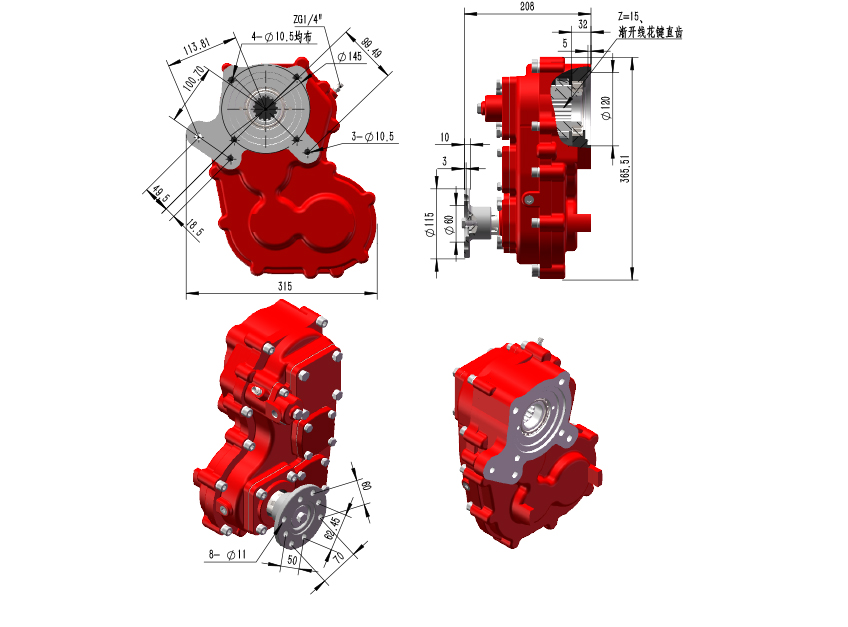

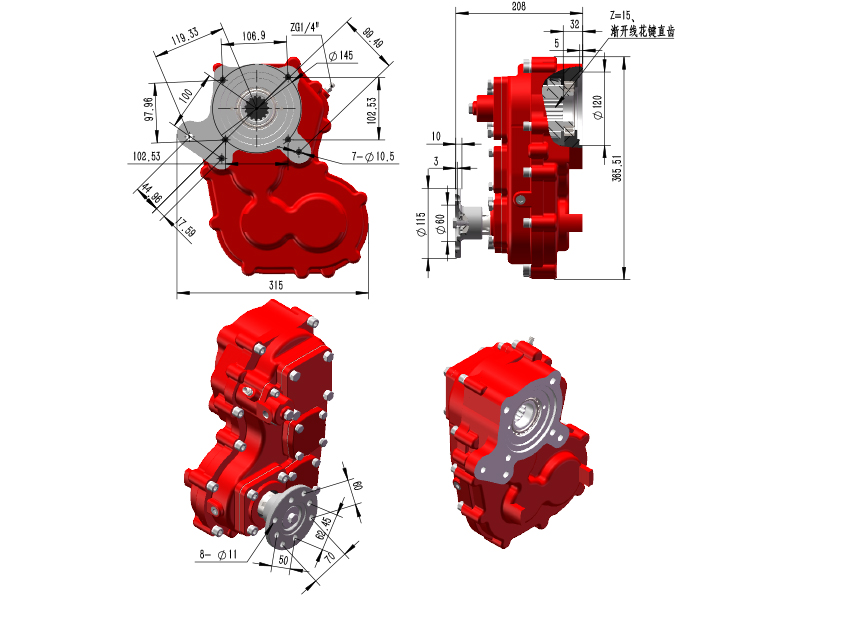

Shape and installation dimensions

Technical Parameters
Model PTO1514QW-012 Output Shaft Rotation Contrary To Engine Rotation
Speed Ratio 1.9333 Output Form Round To Disk
Output Torque(N.m) 700 Output Shaft Head Form External Splines
Manipulation Mode Pneumatic Applicable Models Steyr
Number Of Teeth Engaged z=15、Involute Spline Straight Tooth With Gearbox Fast 12JS180
