PTO1514-750Light vehicle series of automotive power take

PTO1514QN-750PTO1514QW-750

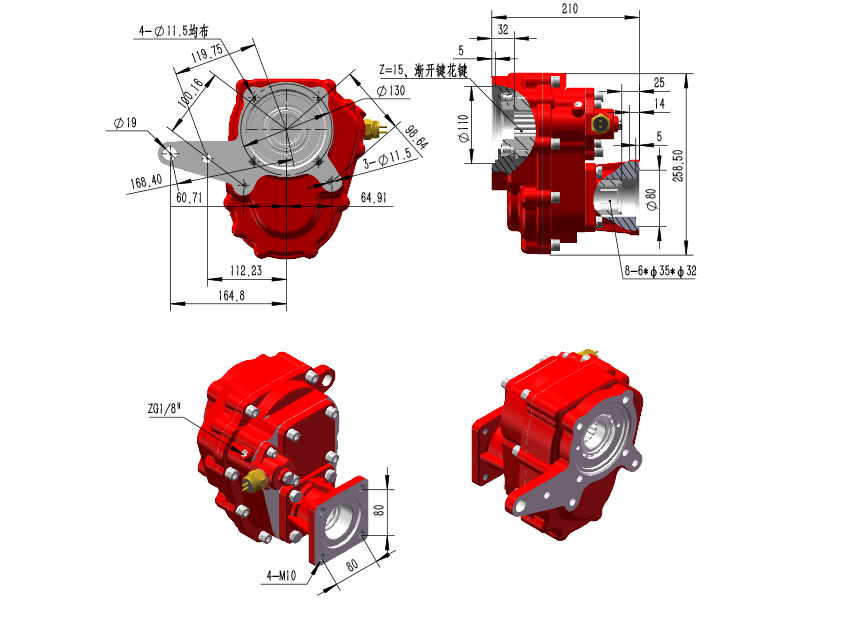

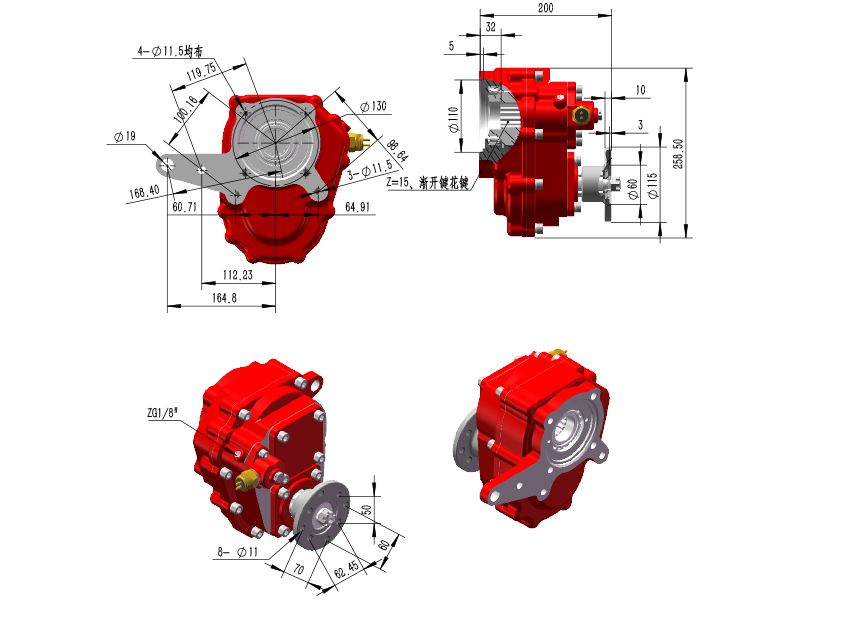

Shape and installation dimensions

Technical Parameters
Model PTO1514QN-750 Output Shaft Rotation Contrary To Engine Rotation
Speed Ratio 0.8 Output Form Connection Flange
Output Torque(N.m) 700 Output Shaft Head Form Internal Splines
Manipulation Mode Pneumatic Applicable Models Steyr
Number Of Teeth Engaged z=15、Involute Spline Straight Tooth With Gearbox Fast 9JS118、RT-11509C
