PTO3077Light vehicle series of automotive power take

PTO3077QNPTO3077QW

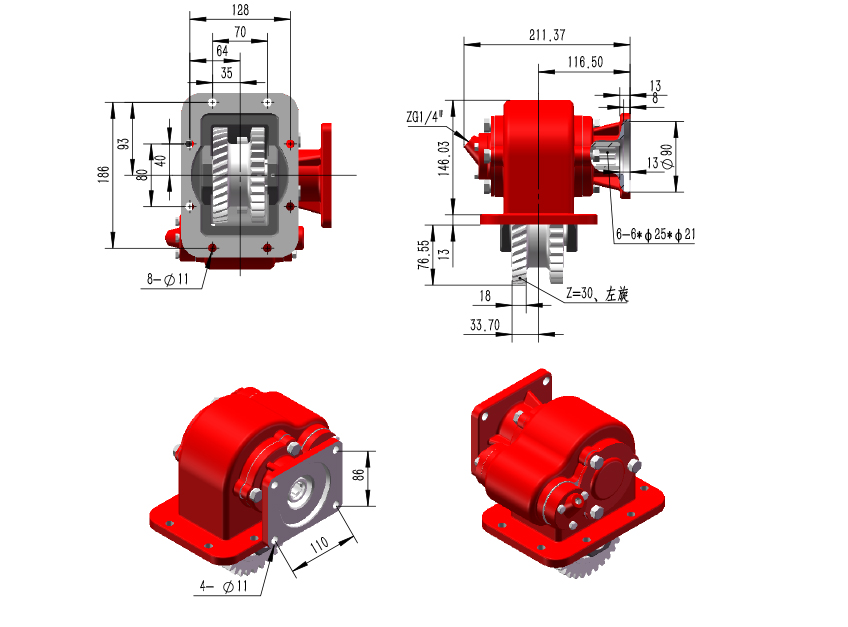

Shape and installation dimensions

Technical Parameters
Model PTO3077QN Output Shaft Rotation Contrary To Engine Rotation
Speed Ratio 1.4 Output Form Rectangular Connection Flange
Output Torque(N.m) 300 Output Shaft Head Form Internal Splines
Manipulation Mode Pneumatic Applicable Models Isuzu
Number Of Teeth Engaged z=30、Levorotatory With Gearbox MBP-6P
