PTO3565Light vehicle series of automotive power take

PTO3565JNPTO3565JWPTO3565JND

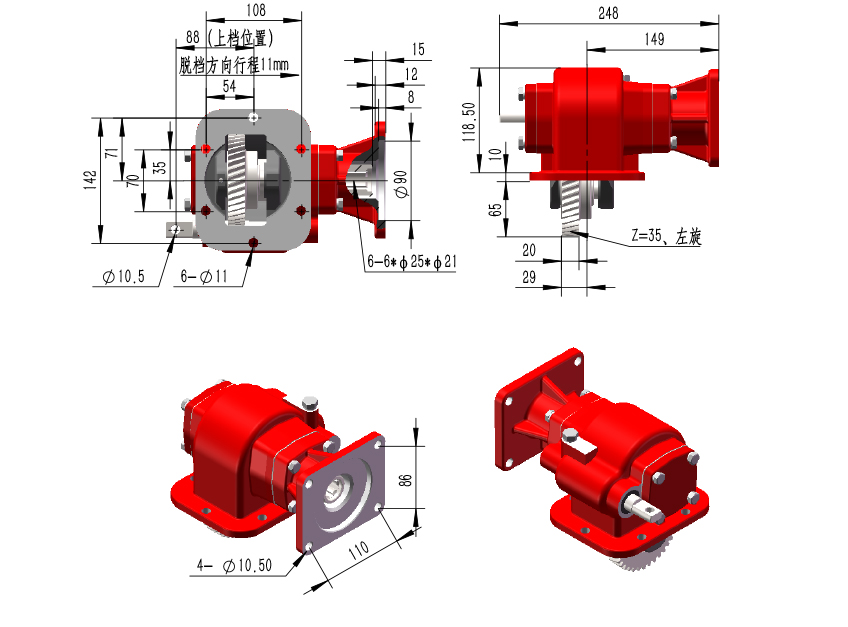

Shape and installation dimensions

Technical Parameters
Model PTO3565JN Output Shaft Rotation Contrary To Engine Rotation
Speed Ratio 1.66 Output Form Rectangular Connection Flange
Output Torque(N.m) 130 Output Shaft Head Form Internal Splines
Manipulation Mode Manual Applicable Models Dongfeng Bully,NKR55L
Number Of Teeth Engaged z=35、Levorotatory With Gearbox MSB-5M,Chongqing Isuzu
