PTO1523Light vehicle series of automotive power take

PTO1523QNPTO1523QW

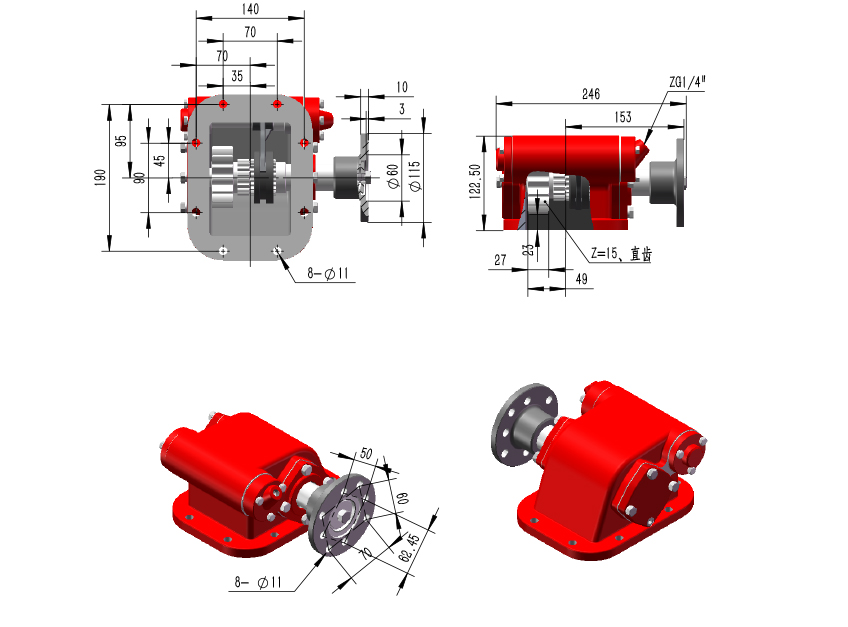

Shape and installation dimensions

Technical Parameters
Model PTO1523QN Output Shaft Rotation Contrary To Engine Rotation
Speed Ratio 1.24 Output Form Rectangular Connection Flange
Output Torque(N.m) 350 Output Shaft Head Form Internal Splines
Manipulation Mode Pneumatic Applicable Models EQ1208
Number Of Teeth Engaged z=15、Straight Teeth With Gearbox DC6J85T,17GOA3-(32,3334,35)
