PTO2168Light vehicle series of automotive power take

PTO2168QNPTO2168QW

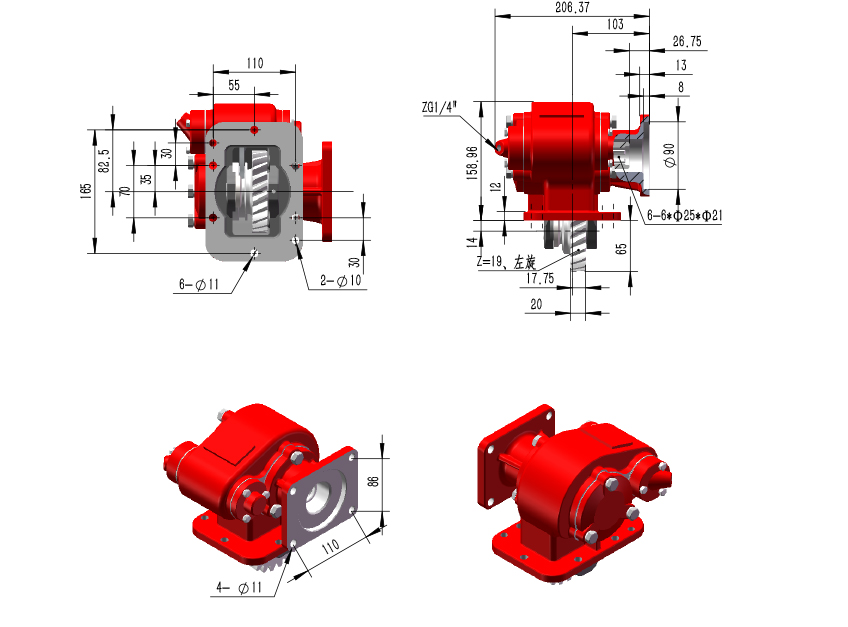

Shape and installation dimensions

Technical Parameters
Model PTO2168QN Output Shaft Rotation Contrary To Engine Rotation
Speed Ratio 0.9545 Output Form Rectangular Connection Flange
Output Torque(N.m) 350 Output Shaft Head Form Internal Splines
Manipulation Mode Pneumatic Applicable Models EQ1181
Number Of Teeth Engaged z=21、Levorotatory With Gearbox 17K1(K17、K23)-0030、EQ145-6
