PTO2483Light vehicle series of automotive power take

PTO2483QNPTO2483QW

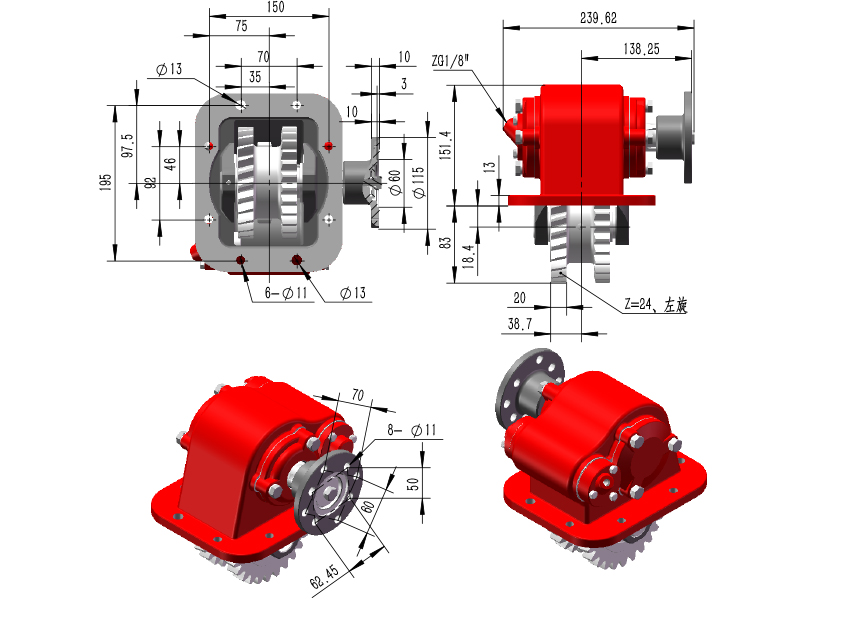

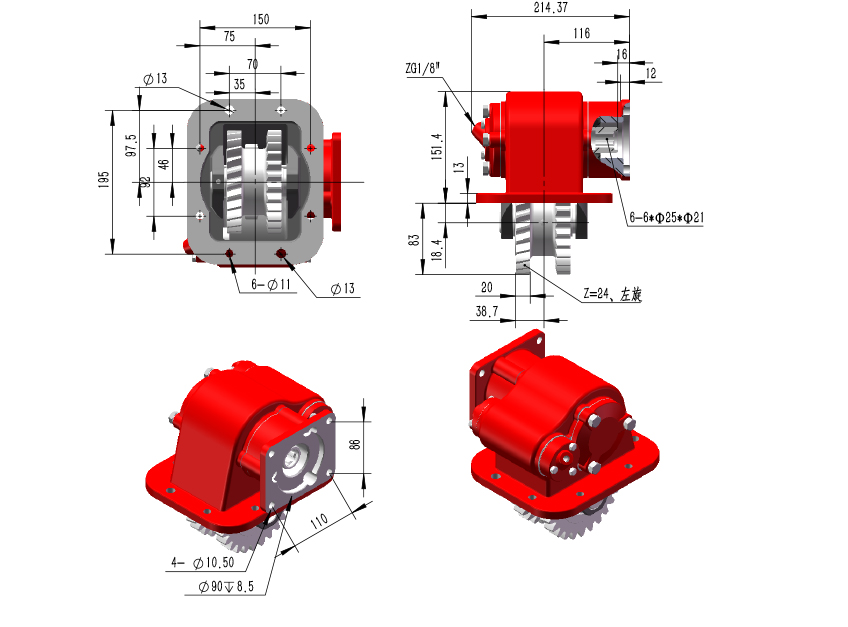

Shape and installation dimensions

Technical Parameters
Model PTO2483QN Output Shaft Rotation Contrary To Engine Rotation
Speed Ratio 1.444 Output Form Rectangular Connection Flange
Output Torque(N.m) 400 Output Shaft Head Form Internal Splines6-6*φ25*φ21
Manipulation Mode Pneumatic Applicable Models CA1160P
Number Of Teeth Engaged z=24、Levorotatory With Gearbox CATS7-120B Overdrive
